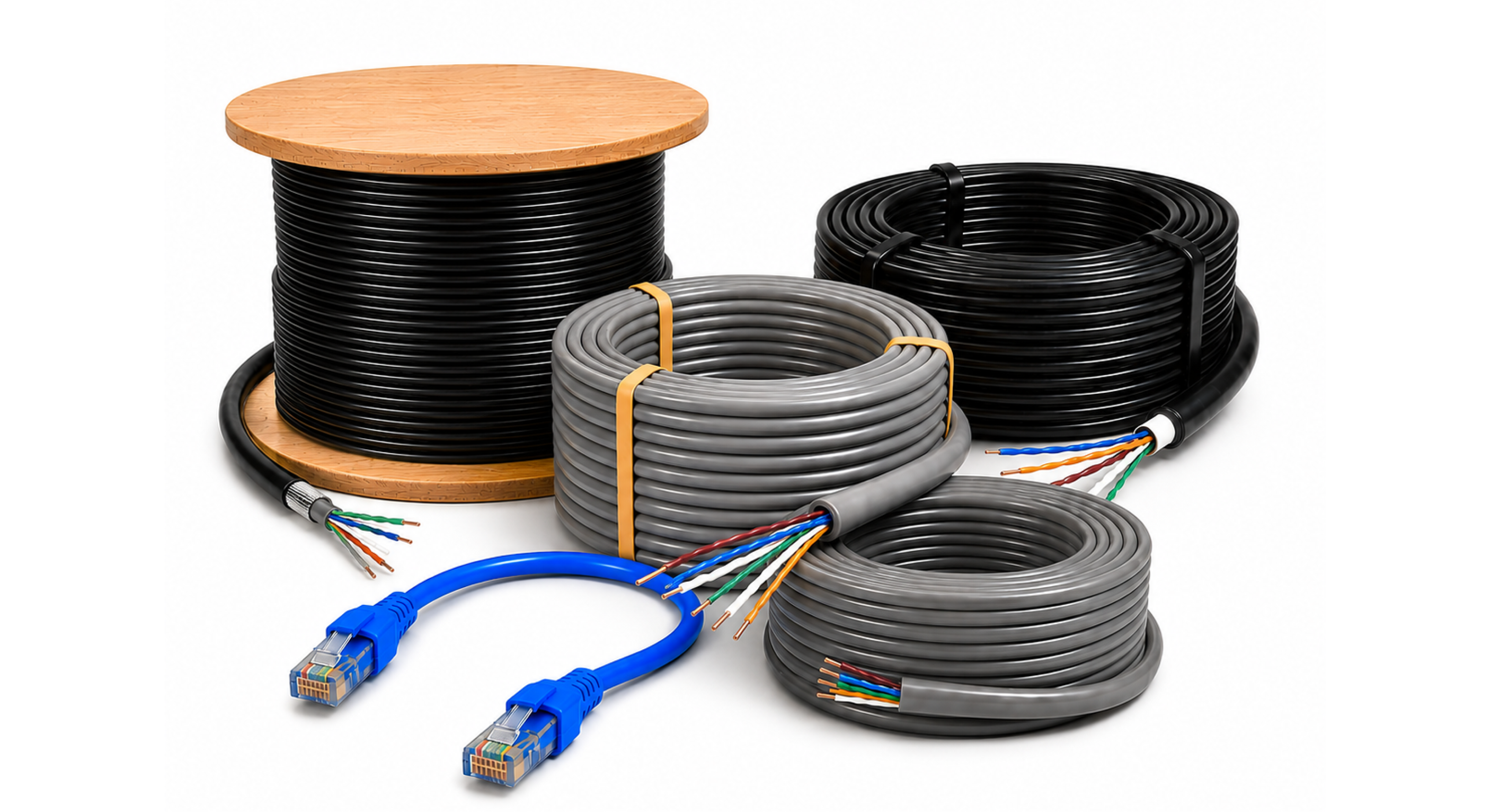

CAT6 Cables

Elixir Network’s CAT6 Cable range is designed to support reliable and efficient data connectivity across indoor, outdoor and specialised networking applications. The range includes CAT6 Indoor UTP Network Cable, CAT6 Outdoor Double Layer UTP Network Cable, CAT6 Flat/Lift Cable, CAT6 Armoured Cable and CAT6 Patch Cord, offering different constructions, formats, gauges and lengths for varied installation requirements. Manufactured with a focus on consistent performance and dependable connectivity, the range is suited to networking, data transmission, PoE and infrastructure applications across residential, commercial, industrial and professional environments. With multiple configuration and length options, Elixir provides a practical cable portfolio for building and expanding structured networking systems.

DOWNLOAD BROCHURE
CAT6 Indoor UTP Network Cable
Outdoor Double Layer UTP Network Cable
CAT6 Flat/Lift Cable
CAT6 Armoured Cable
CAT6 Patch Cord

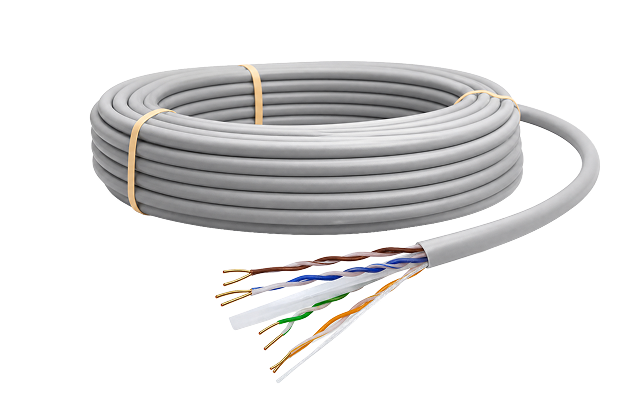

CAT6 Indoor UTP Network Cable

High-performance indoor networking cable for reliable data connectivity.

Elixir’s CAT6 Indoor UTP Network Cable is designed for high-speed data networking applications where consistent connectivity and dependable transmission are essential. The cable is suited to structured indoor network installations and supports applications ranging from standard Ethernet connectivity to Gigabit networking and PoE environments.

REQUEST A QUOTE
Model:
EL-C04PIN
Cable Type:
U/UTP (Unshielded)
Construction:
Metal
Conductor Gauge:
24 AWG
Pair Quantity:
4
Conductor Quantity:
8
Conductor Type:
Solid Copper
Separator Type:
Insulator
Pulling Tension:
11.5 kg
Colours:
Grey, Blue, Yellow
Packing:
100 m / 305 m box
TECHNICAL SPECIFICATIONS
Construction
‍24 AWG copper conductor
Polyethylene insulation
Four twisted pairs
Cross filler separating the pairs
Flame-retardant HDPE outer insulation

‍Applications
‍10 Base-T
100 Base-T
1000 BASE-TX
TP-PMD
100 Mbps CDDI
ATM 155
4/16 Mbps Token Ring
IEEE 802.3af & 802.3at PoE

Get a custom quote

Tell us your requirements for the Heavy-Duty racks and network connections

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

CAT6 Outdoor Double Layer UTP Network Cable

Durable CAT6 cable designed for indoor and outdoor network applications.

Elixir’s CAT6 Outdoor Double Layer UTP Network Cable is designed for network installations that require added protection against outdoor environmental conditions. Its double-layer construction and UV-stabilised outer jacket make it suitable for outdoor applications while also supporting indoor/outdoor installations where greater cable protection is required.

REQUEST A QUOTE
Model:
EL-C04POU
Cable Type:
U/UTP (Unshielded)
Construction:
Metal
Conductor Gauge:
24 AWG
Pair Quantity:
4
Conductor Quantity:
8
Conductor Type:
Solid Copper
Separator Type:
Insulator
Pulling Tension:
20 kg
Colours:
Black
Packing:
305 m drum
TECHNICAL SPECIFICATIONS
Construction
‍24 AWG copper conductor
Polyethylene insulation
Four twisted pairs
Cross filler separating the pairs
Flame-retardant HDPE outer insulation

‍Applications
‍10 Base-T
100 Base-T
1000 BASE-TX
TP-PMD
100 Mbps CDDI
ATM 155
4/16 Mbps Token Ring
IEEE 802.3af & 802.3at PoE

Get a custom quote

Tell us your requirements for the Heavy-Duty racks and network connections

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

CAT6 Flat/Lift Cable

Flexible CAT6 cable designed for convenient network connectivity.

Elixir’s CAT6 Flat Cable is designed for applications where flexibility and ease of installation are important. Manufactured using high-grade copper, it provides a practical networking solution for installations that benefit from a flatter and more flexible cable format.

REQUEST A QUOTE
Model:
EL-C04PLI
Cable Type:
U/UTP (Unshielded)
Construction:
Metal
Conductor Gauge:
7/36
Pair Quantity:
4
Conductor Quantity:
8
Conductor Type:
Solid Copper
Separator Type:
Insulator
Pulling Tension:
20 kg
Colours:
Grey
Packing:
300 m coil
TECHNICAL SPECIFICATIONS
Features
‍Unbreakable outer jacket
Flexible copper construction
Heatproof core
Designed for efficient signal transfer

‍Length options:
‍100 m
200 m
300 m
‍

Get a custom quote

Tell us your requirements for the Heavy-Duty racks and network connections

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

CAT6 Armoured Cable

Reinforced CAT6 cable for demanding networking installations.

Elixir’s CAT6 Armoured Cable is part of the CAT6 cable range and is intended for installations where additional physical protection of the network cable is required. The brochure identifies it as a 23 AWG black cable supplied in 305 m lengths.

REQUEST A QUOTE
Model:
CAT6 Armoured Cable
Conductor Gauge:
23 AWG
Colours:
Black
Length:
305mm

Get a custom quote

Tell us your requirements for the Heavy-Duty racks and network connections

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

CAT6 Patch Cord

Ready-to-connect CAT6 patch cable for high-speed network equipment.

Elixir’s CAT6 Patch Cord is designed to connect networking equipment such as hubs or converters with terminal devices in high-speed network environments. It uses four twisted pairs with RJ45 connectors and is available in multiple lengths and colours for different installation requirements.

REQUEST A QUOTE
Model:
CAT6 Patch Cord
Cable Type:
26 AWG, 4 Pair CAT6 Patch Cable
Transmission
100/1000 Mbps
Wiring
568A / 568B
Conductor
Pure Copper
Connector
RJ45
Connector Protection
PVC cover
TECHNICAL SPECIFICATIONS
Available Lengths:
‍0.25 m
0.5 m
1 m
3 m
5 m

‍Available Colours:
‍Blue
Grey
Yellow
‍
‍Standards / Compatibility
‍ANSI/TIA-568C.2 Category 6
Compatible with Cat5e, Cat5e+, Cat6+ and Cat6A certified products
Designed for high-speed network environments
‍

Get a custom quote

Tell us your requirements for the Heavy-Duty racks and network connections

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
